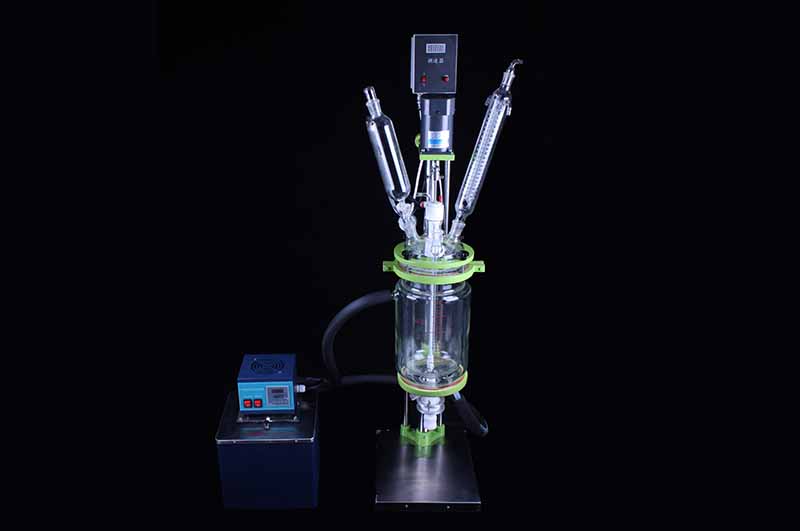

5L Jacketed Glass Reactor
  • 5L Jacketed Glass Reactor

5L Jacketed Glass Reactor

Brief introduction

 Takes reaction under normal pressure or negative pressure and constant stirring. Inter layer can lead in refrigerating fluid, water or high temperature liquid to heat or cool the materials .Jacketed glass reactor is widely used in the experiment, middle-scale test, and production of chemistry, fine chemical engineering, biological pharmacy and synthesis of new materials. The reactor can be  a system with circulating water vacuum pump, chiller/low temperature circulator, heating and cooling circulator


Features

1.GG-17 high borosilicate glass, with good chemical and physical properties.

2.The evaporation and back-flow of reaction material can be controlled.

3.Reacting temperature:-80-300℃

4.The design of large bottle mouth, easier to clear

5.It can be used as a distillation syntheses device.

6.The sealing performance is 0.098 Mpa

7.Temp and speed both display, easier and more convenient to measure the temperature.


Basic ParameterTypeS212-1LS212-2LS212-3LS212-5L
Glass materialGG-17
Main supportStainless Steel
Reaction bottle volume1L2L3L5L
Interlayer volume0.4L0.8L0.8L0.8L
Oil in and out circulation portEnter from low port, come out from high   port
Number of reactor bottle5
Discharge outlet liftoff height30mm
Reactor reaction temperature-80-250 degree
Vacuum degree0.098Mpa
Stirring speed0-800rpm
Stirring diameter of axis8mm
Stirring power40W90W
Voltage/Frequency(V/Hz)220V/50Hz
Boundary dimension (mm*mm*mm)350*345*1000650*345*1000350*410*1250350*410*1250
Baseboard Dimension(mm*mm*mm)325*345325*345325*410325*410
Package Dimension(mm*mm*mm)1200*480*400   0.23m³1200*480*400 0.23 m³1380*500*400 0.24 m³1380*500*400 0.28 m³
Package weight(KG)32323638
Functional ConfigurationsSpeed adjustment modeElectric stepless speed regulation
Rotate speed display modeDigital display
Sealing modePTFE sealing, ¢50 flange stirring mouth
CondenserVertical 40*400mm, 24# standard mouthVertical 40*400mm, 24# standard mouthVertical 60*450mm, 24# standard mouth
Dropwise adding device250ml constant voltage funnel, 24#   standard mouth500ml constant voltage funnel, 29#   standard mouth
Depression device24# standard mouth reducing valve
Temperature testing tube19# standard mouth24# standard mouth
Discharging methodInclined PTFE discharging valve, ¢60 flange mouth
Vacuum display modeVacuum meter
Stirring connecting methodUniversal joint connecting
Stirring barAnchor type and push type stainless steel   bar, covered with PTFE

The Voltage and Power can be customized
