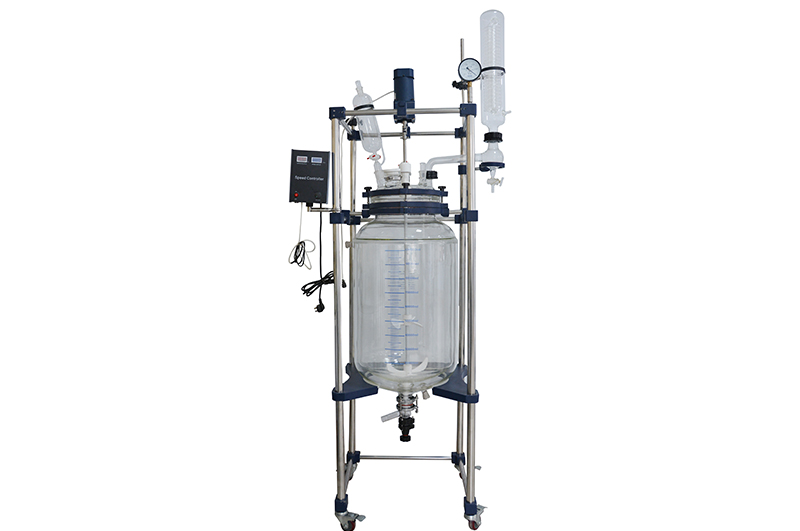

200L Jacketed Glass Reactor

Double Jacketed Glass Reactor double glass design, inner into reaction menstruum do stirring reaction, interlayer can pass different cold sources (cryoprotectants, hot water or hot oil) do cycle heating or cooling reaction. Setting thermostat conditions, in confined glass reactor, can use require atmospheric or negative pressure conditions conducted stirring response and do reaction solution reflux and distillation is modern Fine Chemical Factory, biopharmaceuticals and new materials synthesized ideal test production equipment.

Main features of 200l Glass Reactor :

1. Constant rotate speed, no electric brush, no spark, safe and stable, enable continuous working.

2. Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.

3. When glass interlayer connecting to hot oil and been circulated, it can do heating reaction, connecting to refrigerating fluid can do low temperature reaction.

4. Enable reaction under normal temperature, that is connecting to tap water can take away the reaction heat quickly.

5. Discharge outlet has flange mouth and PTFE valve, there has no dead angle in vessel, detachable and convenient for solid material to discharge.

6. Main body is made from stainless steel, which is beautiful and anti-corrosion.

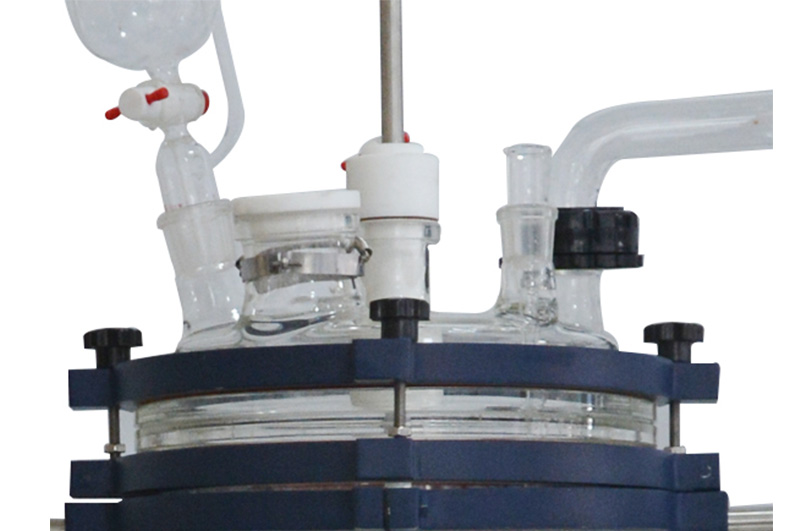

7. Sealed by PTFE component, be able to maintain higher vacuum degree.

8. Be able to work under normal and negative pressure, negative pressure up to -0.098MPa.

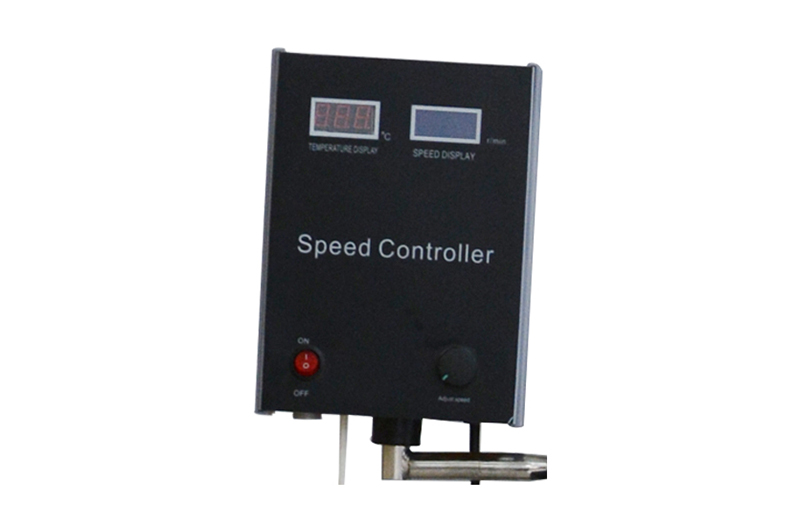

9. Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark.

10. The inner core of stirring rod is made from 321 stainless steel, strengthened anti-corrosion property, military technology makes workmanship more exquisite, operation with high proficiency.

Technical Data

We are professional manufacturer!!! . If you are interested in our products . Please send us inquiry immediately for price and more information.We will reply you very soon!
