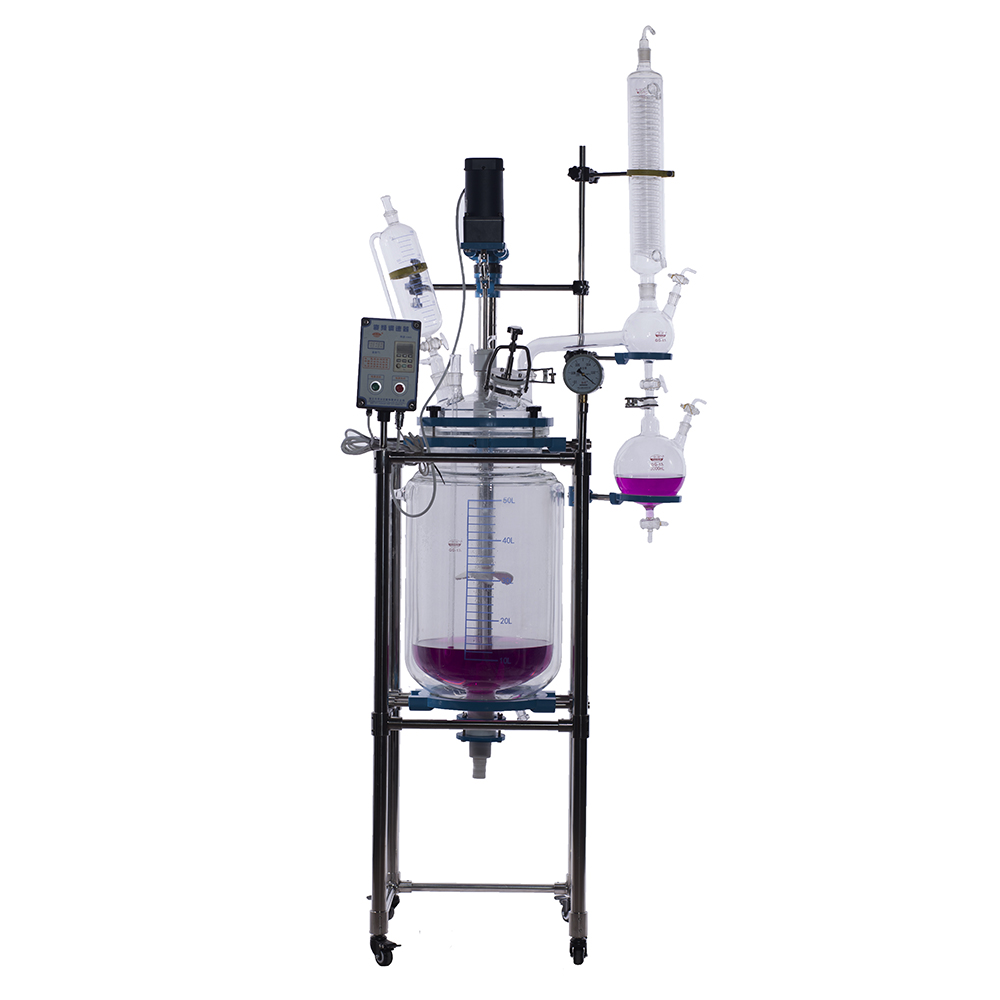

Application principle of jacketed glass reactor

Dear customer,This is zhengzhou Well-known instrument equipment co., LTD

Our company is committed to jacketed glass reactor;Multifunctional glass reactor development, production and sales.Specializing in providing a full range of glass kettle accessories and non - standard reactor processing. Good quality, excellent price, first-class service!

Our company designs and manufactures 1-150l jacketed glass reactor with advanced foreign technology, as well as the matching heating, cooling and refrigeration cycle device, you are welcome to choose.jacketed glass reactor can provide high temperature reaction;You can do low temperature reactions;The jacketed glass reactor can be vacuumized to perform vacuum decompression reaction.Moreover, its unique design makes the experiment safer and more convenient.

The working principle of jacketed glass reactor is: through the interlayer of jacketed reactor, thermostatic (high or low temperature) thermal solution or coolant is injected to heat or cool the materials in the reactor at a constant temperature, and stirring can be provided.This device can be vacuum stirring reaction, distillation concentration reaction, separation, extraction, the reaction heat experiments, we can in the jacketed zhongtong into the tap water can take the reaction heat, reaction material in reactor, and can control the evaporation and the backflow of reaction solution, reaction finished, the material can be released from the discharging mouth of the kettle bottom, convenient in operation.It is an ideal equipment for modern chemical sample, medium sample experiment, biopharmaceutical and new material synthesis.

Main features:

1. Frequency control, ac induction motor.Constant speed, no brush, no spark, safe and stable, can work continuously.

2. The whole set of glass instruments is designed and produced by GG17|GG3.3 high-borosilicate glass, with good chemical and physical properties.

3. Connect the hot oil on the interface of the glass sandwich to conduct heating reaction after circulation, and connect the refrigerant to conduct low-temperature reaction.

4. It can react at room temperature, and the reflected heat can be quickly taken away by connecting tap water.

5. Lower the feeding mouth with flange mouth and ptfe valve, there is no dead Angle in the container, which can be removed to facilitate the discharging of solid materials.

6. The five-port reactor cover and extra-large port are designed for easy cleaning, and the standard port is optional for assembling reflux and distillation synthesis device.

7. The complete set of equipment is made of glass and tetrafluoroethylene in contact with reaction materials, with high strength and acid and alkali resistance, which guarantees the success of the experiment.

Instrument is introduced

jacketed glass reactor can truly realize the multi-purpose of the experiment and meet the needs of different aspects of the experiment. This equipment can:

1. Vacuum stirring reaction

High temperature, low temperature reaction

3. Mixing reaction with constant speed operation

4. Can be distilled, reflux and concentrated

5. Negative pressure operation, liquid separation function

6. Rectification is carried out by assembling rectification columns

7. Assemble glass reaction kettle production line according to specific requirements.

8. For plant extraction, concentration has good technological effect

9. Stir and separate, equipped with liquid separation device, the effect is obvious

10. Reaction preparation of ultrafine powder, hygienic grade preparation of drugs, visible, clean.

11. It can replace the rotary evaporator for high-purity material concentration, equipped with ultrasonic stirring, and exponentially reduce the reaction time.

12. No matter separation or synthesis, feeding is convenient and easy to operate.

jacketed glass reactor is a new type of glass reactor after many years of improvement on the basis of single-layer multifunctional glass reactor, which realizes the requirements of convenient high and low temperature, as well as rapid heating and cooling experimental process. It is an essential instrument for modern laboratory, chemical industry, pharmaceutical industry and heart material synthesis.

The standard components of jacketed glass reactor include: stirring motor, governor, condenser, continuous titration funnel, vacuum plug head, vacuum suction head, thermometer sleeve, a set of shelf of reaction kettle, 2 meters of heat-conducting silica gel tube, a circulating constant temperature tank.One kettle body, one cap, one set of lower discharge, and one set of stirring and fixing seals.
