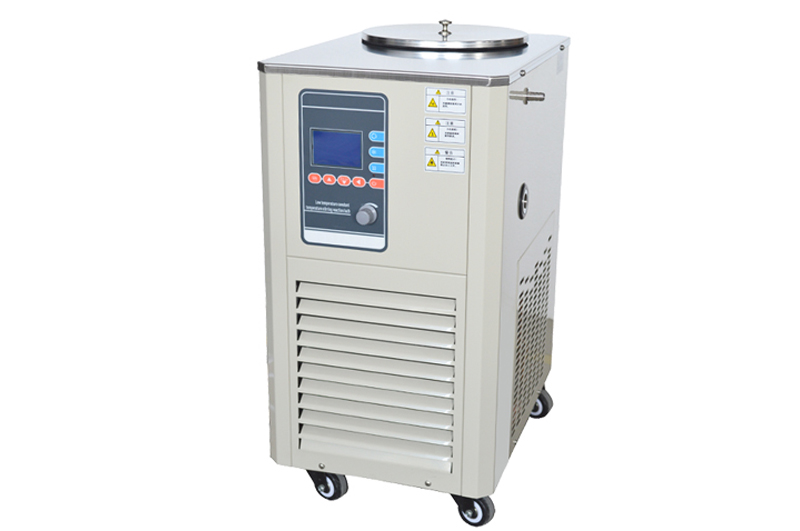

10L Low-temp(Constant-temperature)Stirring reaction bath

Inquire Now Send Email

10L Low-temp(Constant-temperature)Stirring reaction bath

Introduction:

It can replace dry ice and liquid nitrogen to have low temperature reactions and has high precision of temperature control. It is mainly used for cooling and heating up flasks, beakers, and tubes and so on and ensuring them constant temperature, etc. It is used for experiments, detection and identification in hospitals, scientific research institutions, universities in biological enzyme and other fields.

The Characteristics:

● Digital setting and display of temperature.

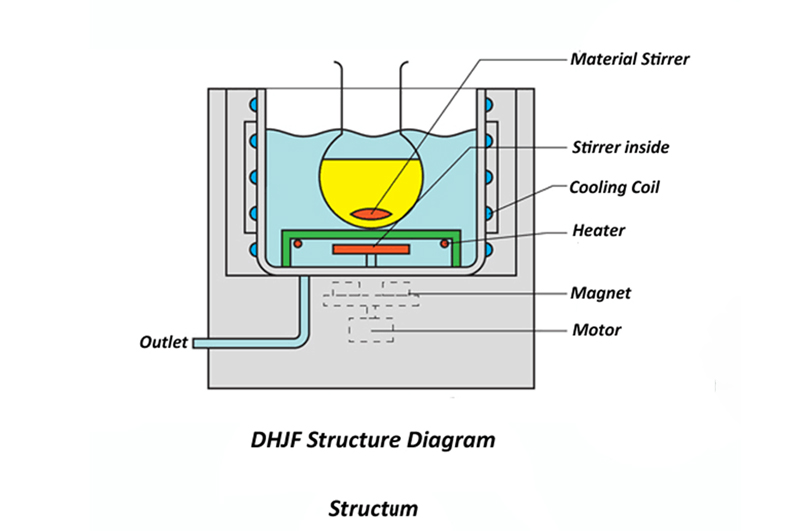

●Fully enclosed magnetic stirrer can ensure stirring stability.

●It can be equipped with built-in two stage stirring and can work with stirring within the reaction vessel to maintain temperature of materials even and consistent.

●Adjustable capping caliber can reduce secondary refrigerant consumption.

●Equipped with a fixed link, it is easy for placement and fixation of buret, sensors and other equipped devices .

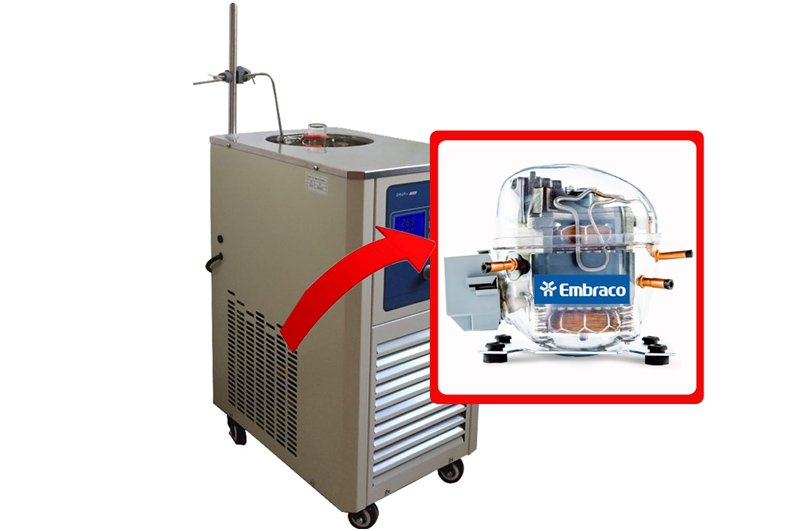

● Compressors of International famous brand with high reliability and efficiency.

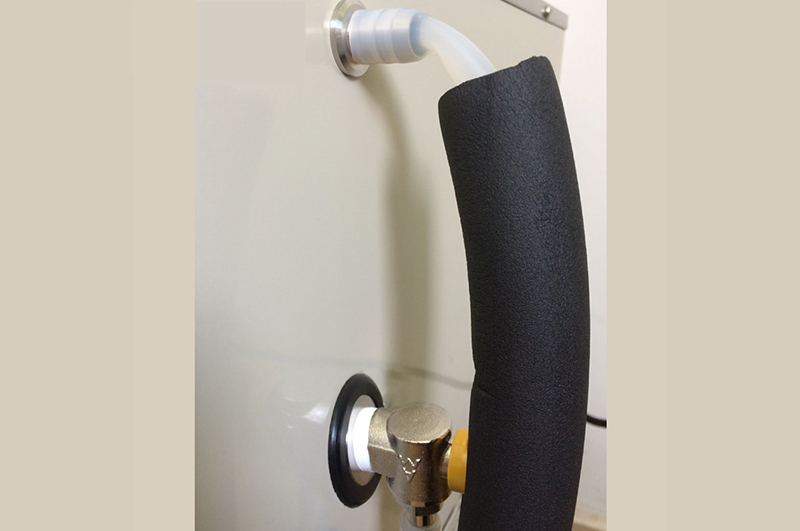

●Tapping port is set to facilitate the staff for the replacement of bath liquid.

Technical Data;

Model	DHJF-4002	DHJF-4010	DHJF-4005	DHJF-2005	DHJF-4020	DHJF-4030
Temperature range（℃）	-40～99	-40～99	-40～99	-20～99	-40~99
Temperature stability（℃）	±0.2				±0.5	±0.5
Bath volume（L）	2	10	5	5	20	30
Bath size（mm）	ф160×105	ф250×250	ф250×130	ф250×130	Ф300x300	Ф400x235
Heating Power	300W	1500W			1500W	3600W
Flow（L/min）	-	20	20		20	20
Pressure（bar）	-	0.4			0.4	0.4
Ambient temperature（℃）	5～25
Power Supply	220/50 V/Hz					380/50
Overall Power（W）	820	2420	2450	2135	2870	6088
Materials of Machine Casing	SPCC steel with powder coating
Dimensions（mm）	470L×430W×435H	590L×485W×935H	525L×400W×795H	535L×400W×795H	595Lx535Wx1010H	665Lx545Wx1010H
Weight（kg）	35	84	56	42	95	120
Opening size(mm)	Ф140	Ф210		Ф210	Ф280	Ф320
The max flask input(ml)	500	3000	2000	2000	5000	10000
Cooling capacity	10~290	20~1880	10~1300	320~1150	50~2480	480~4780
