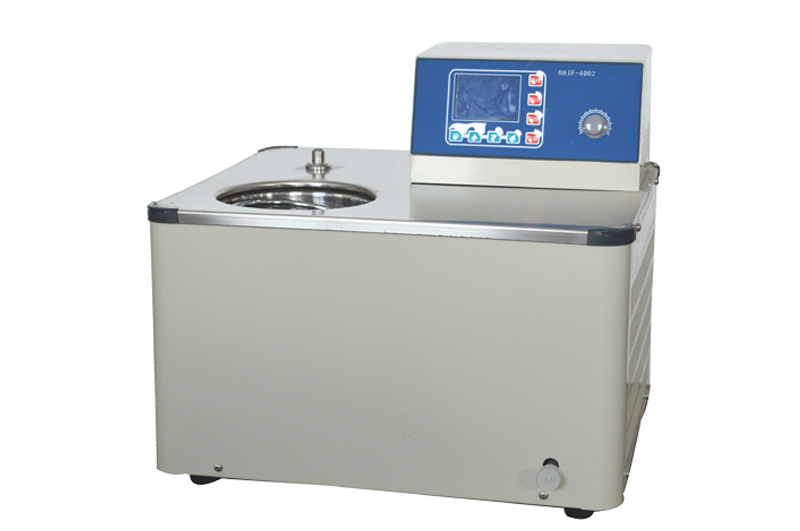

Small Low-temp(Constant-temperature)Stirring reaction bath

Inquire Now Send Email

Small Low-temp(Constant-temperature)Stirring reaction bath

Introduction:

It can replace dry ice and liquid nitrogen to have low temperature reactions and has high precision of temperature control. It is mainly used for cooling and heating up flasks, beakers, and tubes and so on and ensuring them constant temperature, etc. It is used for experiments, detection and identification in hospitals, scientific research institutions, universities in biological enzyme and other fields.

The Characteristics:

● Digital setting and display of temperature.

●Fully enclosed magnetic stirrer can ensure stirring stability.

●It can be equipped with built-in two stage stirring and can work with stirring within the reaction vessel to maintain temperature of materials even and consistent.

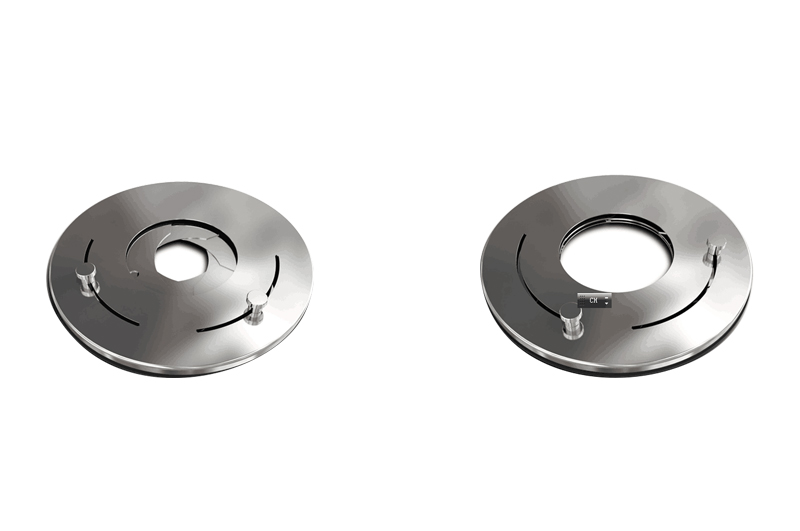

●Adjustable capping caliber can reduce secondary refrigerant consumption.

●Equipped with a fixed link, it is easy for placement and fixation of buret, sensors and other equipped devices .

● Compressors of International famous brand with high reliability and efficiency.

●Tapping port is set to facilitate the staff for the replacement of bath liquid.

Technical Data;

Model	DHJF-4002	DHJF-8002
Temperature range（℃）	-40~99	-80~10
Temperature stability（℃）	±0.2
Bath volume（L）	2
Bath size（mm）	ф160×105
Heating Power	300W	-
Flow（L/min）	-	-
Pressure（bar）	-	-
Ambient temperature（℃）	5～25
Power Supply	220/50 V/Hz
Overall Power（W）	820	1024
Materials of Machine Casing	SPCC steel with powder coating
Dimensions（mm）	470L×430W×435H	610L×410W×495H（horizontal type）450Lx380Wx860H(Vertical type)
Weight（kg）	35	68
Opening size(mm)	Ф140	Ф140
The max flask input(ml)	500	500
Cooling capacity	10-290	60~200
