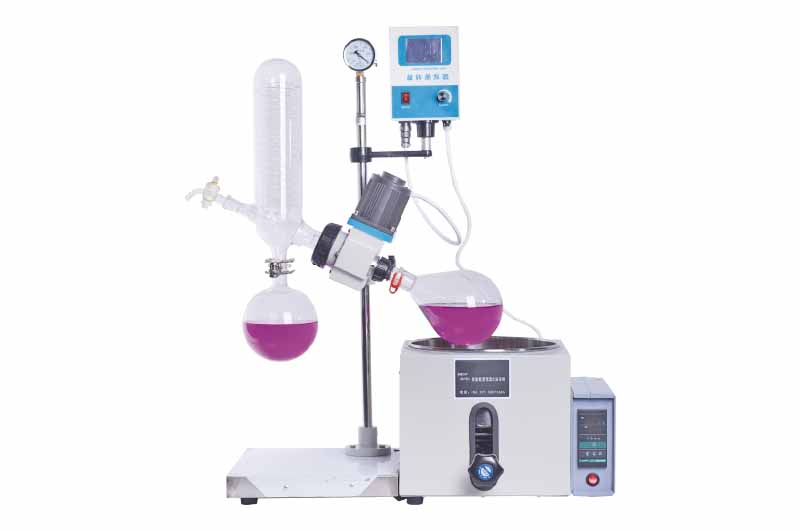

2L Rotary Evaporator

Main Features

1, RE-201D  rotary evaporator is water/oil lifting. Turning the hand-wheel on the  water/oil  bath,you can make the  water/oi bath is raised or lowered

2, When rotate the screw rotation of the rotating body of RE-201D, also can make the body , rotator, evaporator, condenser, collect sector together with the rotation, make it along the horizontal direction in a clip angles.

3, The condenser adopts two structures. One is the dual pipeline convection principle and is used for evaporating organic solvents. The other is single pipe container with interlayer that could hold cooling water, ice and drikold. It is vertical type to decrease volume and is used for evaporating organic solvents.

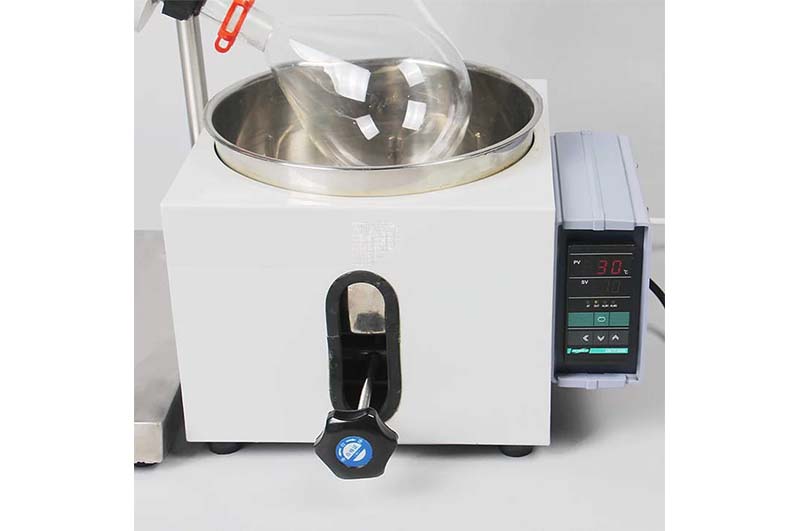

4, Stainless steel heating tank provides heat source. The temperature range will be RT~99 ℃ with water. The water tank is cylindrical and made of high quality stainless steel. So it is corrosion resistance and durable. The tanks are available for 2-20liter rotating flask heated. Moreover, the tank can be moved according the rotating flask size.

5, PTFE evaporating pipe, good sealing and heat-resisting. Joint part is sealed Fluorine rubber mat which brings good performance.

Fluorine rubber seals have all adopted a new national standard, easy for users to purchase replacement.

6, The flasks are made of GG-17 high borosilicate glass which is blowed by hand. Their intensity, concentricity, glossiness, and surface finish are better than rough flasks

Product Detail

Product Application

A rotary evaporator (or rotavap/rotovap ) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. When referenced in the chemistry research literature, description of the use of this technique and equipment may include the phrase "rotary evaporator", through use is often rather signaled by other languages (eg, "the sample was evaporated under reduced pressure").
