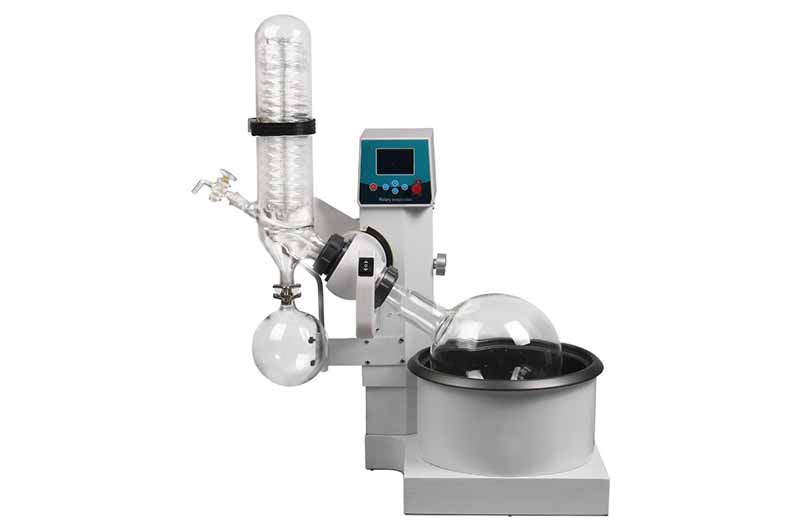

Auto 3L Rotary Evaporator

Auto 3L Rotary Evaporator

Rotary evaporator is mainly used in pharmaceutical, chemical and bio-pharmaceutical industry concentration, crystallization, drying, separation and solvent recovery. The principle is under vacuum conditions, constant temperature heating, the rotating bottle constant speed rotation, a large area of the material in the sidewall formation film, efficient and evaporated. The high efficiency glass solvent vapor condenser cooling, the recovery in the collection bottle, greatly improving the evaporation efficiency. Especially suitable for high temperature easily decomposed denatured concentrated purification of biological products.

Main featurers

1, The main support is made of aluminum alloy with reasonable structure.

2, The sealing system adopts teflon + imported fluorinated rubber double - way seal.

3, All glass parts are made of high borosilicate glass (gg-17), which is resistant to high temperature and corrosion.

4, Continuous feeding can be convenient for customers to use, valve type feeding tube sleeve connected with tetrafluoroethylene pipe.

5, Vertical double snake-tube condenser ensures high recovery with feeding tube.

6, Temperature digital display, intelligent thermostat control, PT100 sensor quickly and accurately transfer temperature.

7, The fuse is safe to protect and has the function of automatic power cut off against dry burning.

8, Electronic non-pole speed regulation (0-200rpm), digital speed display, rotary setting, easy operation.

9, The pot is made of stainless steel and teflon.

10, Micro - motor drive, the main engine automatically up and down

Product detail

Application

Vacuum distillation equipment is mainly used for pharmaceutical, chemical and biopharmaceutical industries such as concentration, crystallization, drying, separation and solvent recovery. The principle is: under vacuum conditions, constant temperature heating, the rotating bottle constant speed rotation, the material in the bottle wall to form a large area of film, efficient evaporation. The solvent vapor is cooled by a high-efficiency glass condenser and recovered in a collection bottle, greatly improving the efficiency of evaporation. It is especially used for the purification of biological products which are easily decomposed at high temperature.

Technical Data
