150ml Hydrothermal Synthesis Reactor

Inquire Now Send Email

Brief Indroduction:

KH series Hydrothermal synthesis reactor is used in catalysis, crystal, polymer and other experiments, it adopts the external heating mode. In order to reduce the size, and be suitable for several reaction kettles working at the same time and same reaction temperature (for example, put several reactors inside the oven for heating), special models can be customized.

KH series hydrothermal synthesis reactor is used to make new synthetic chemicals under a certain temperature and pressure. It is widely used in new materials, energy, environmental engineering and other fields of scientific research and experiments, it is a small commonly used reactor used in teaching and scientific research.

Main Characteristic:
1. Using high-quality 0Cr18Ni9Ti nonmagnetic stainless steel.
2. The kettle body and the cover are sealed by a durable, reliable sealing structure, the sealing effect could be long-term stable without leakage.
3. Complete PTFE material liner, with excellent acid resistance and alkali resistance.

Main Technical Details:
1. Working Temperature: ≤200°C
2. Working Pressure: ≤3MPa (Pressure Gauge)
3. Heating and Cooling Rate: ≤5°C/min
4. Specification: 25ml, 50ml, 100ml, 150ml, 200ml, 250ml. 500ml.1000ml

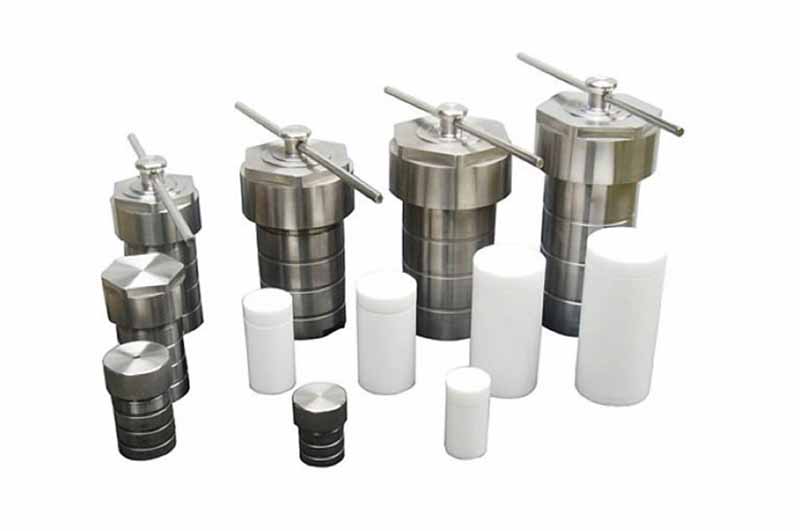

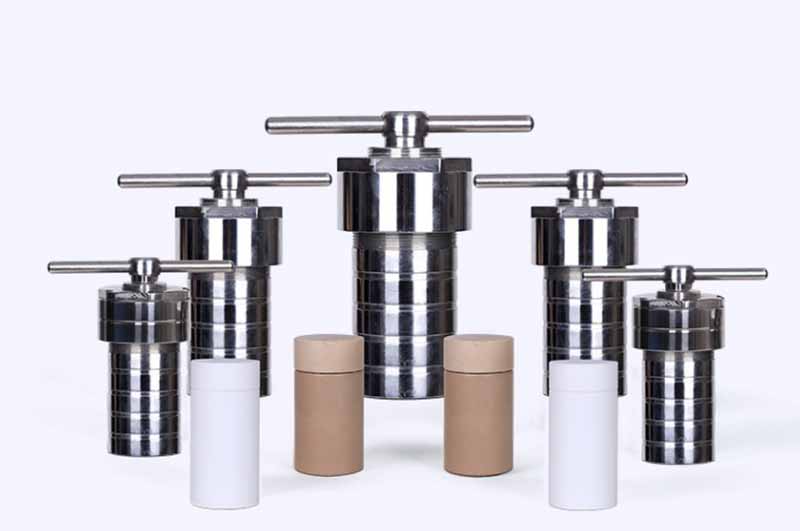

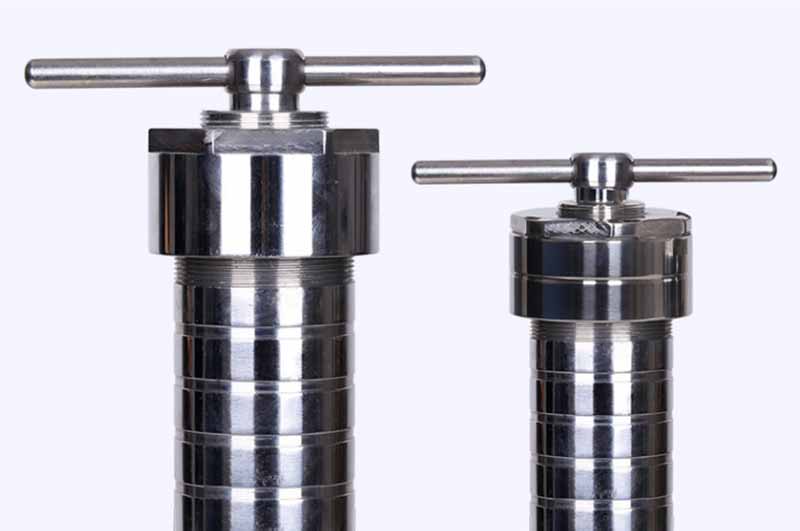

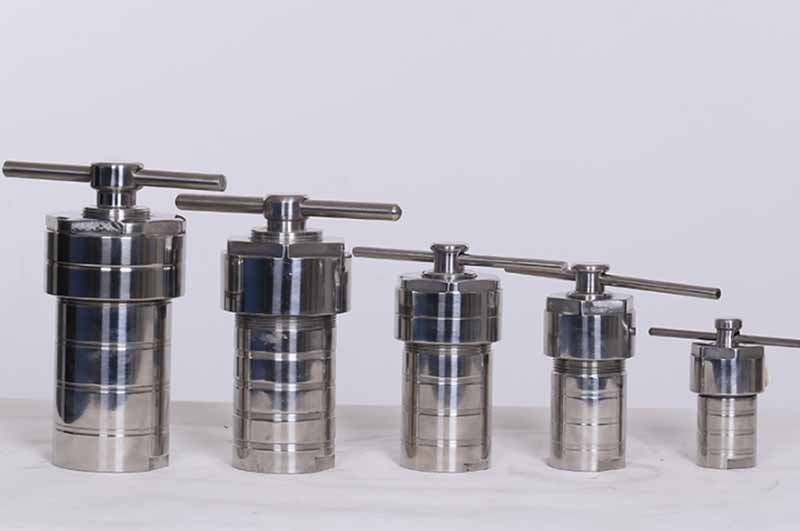

Hydrothermal Synthesis Reactor
Model	KH-25	KH-50	KH-100	KH-150	KH-200	KH-250	KH-500	KH-1000
Material	Kettle body is stainless steel and the liner is PTFE
Capacity(ml)	25	50	100	150	200	250	500	1000
Remarks	Safe temperature is 200℃. Max. Pressure is 3 Mpa

Also we can offer customized size according to users’ need.

We are professional manufacturer!!! . If you are interested in our products . Please send us inquiry immediately for price and more information.We will reply you very soon!
