100L 3.53Cu.Ft. Fully Automatic Vertical Autoclave Steam Sterilizer

Inquire Now Send Email

Product introduction:

The vertical steam sterilizer is equipped with LCD screen automatic control program, built-in electric heater, safety valve, pressure and temperature display, sterilization end alarm and automatic cut off heating power supply and other devices. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, power-saving, durable, and low-cost products. It is an ideal equipment for disinfection and sterilization of surgical instruments, dressings, utensils, culture media, etc. by medical and health, scientific research and other units.

100L Fully Automatic Vertical Autoclave Steam Sterilizer

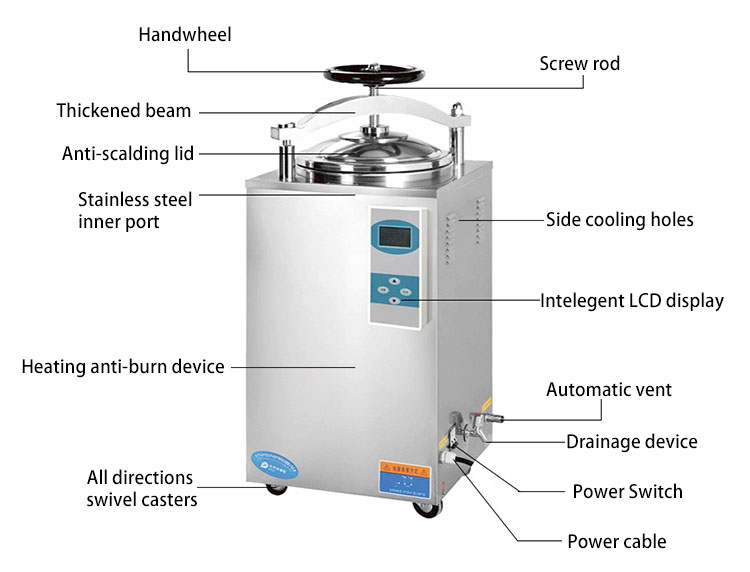

Main features:

l .Fully stainless steel structure

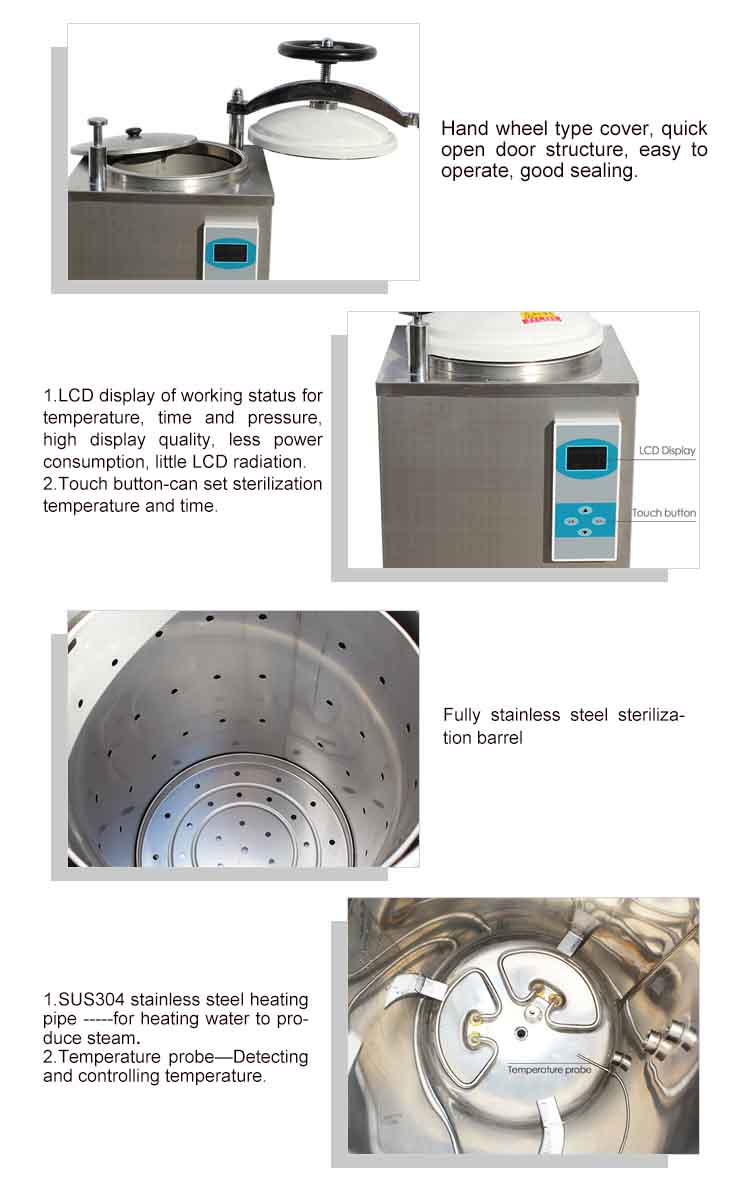

2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Digital display of working status,touch of key
5.Auto discharge the cool air,and steam discharging auto matically after sterilization
6.Over temperature&over pressure auto-protection
7.Safe protection of water lacking
8.Self-inflating type seal
9.Automatically shut off with beep reminding after sterilization
10.Used for sterilization of medical instruments, medical cotton products.
11.Fully stainless steel SUS304/AISI 304 -3mm
12.12months warranty
13.Possible to install drying system according request

Main parameters:

Model	LS-35HD	LS-50HD	LS-75HD	LS-100HD
Chamber volume	35L	50L	75L	100L
working pressure	0.22MPa
Working temperature	134℃
Max working pressure	0.23Mpa
Timer	0~99min or 0-99hour59min
Adjustment of temperature	105~134℃
Power	2.5Kw/220V.50Hz	3Kw/220V.50Hz	4.5KW /220V.50Hz
Overall dimension	450x50x1010(mm)	510x470x1130(mm)	560x560x1120(mm)	540x560x1250(mm)
Transport dimension	570x550x1150(mm)	590x590x1280(mm)	650x630x1280(mm)	680x630x1370(mm)
G.W/N.W	72Kg/ 56Kg	88Kg/ 68Kg	100Kg/80Kg	110 Kg/85Kg
